Self Dump Hoppers

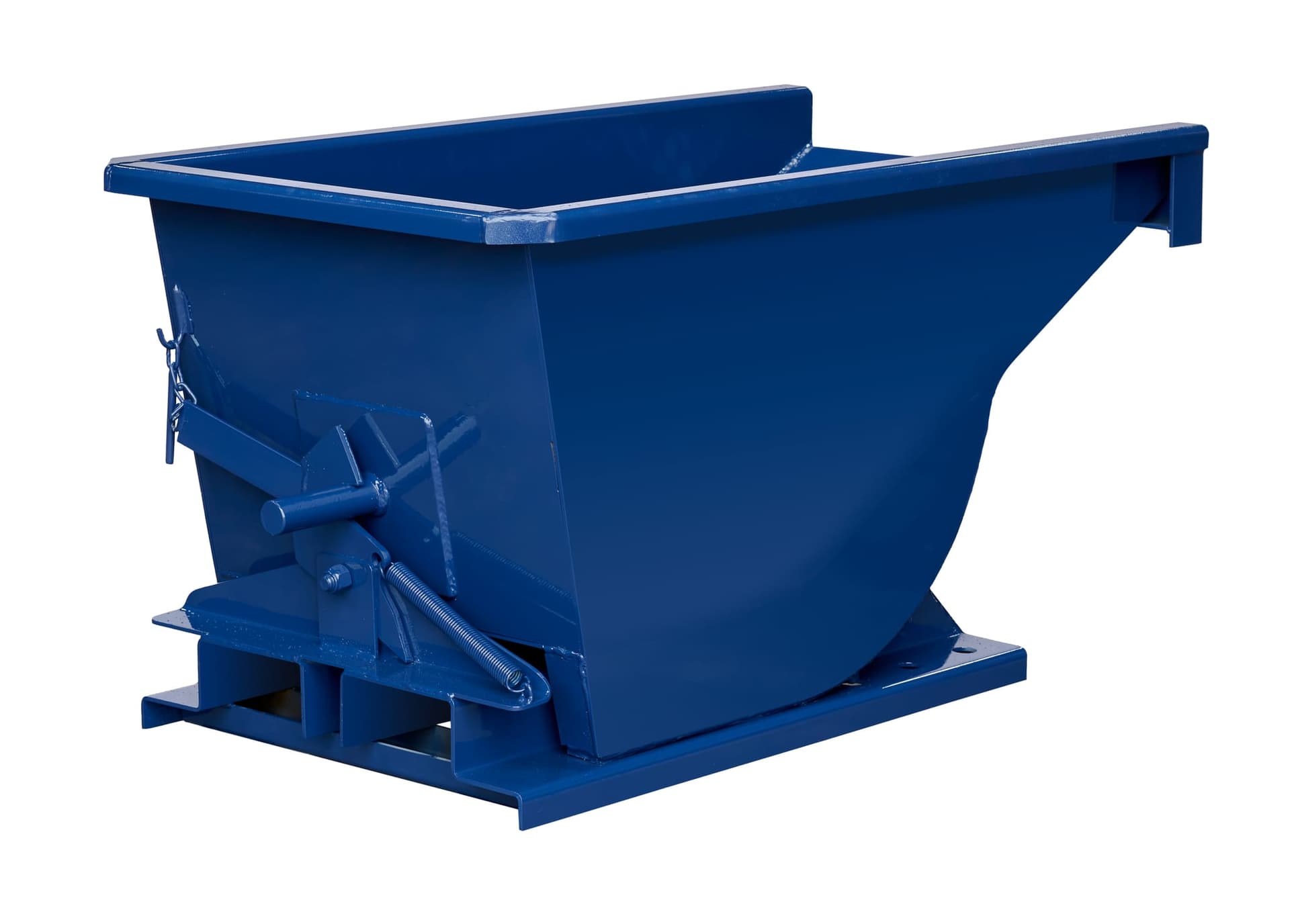

SD14R

Capacity (Cu. Yards): 1/4 Weight (with no extras): 250 lbs Height: 25-5/8 Overall Width: 27 Overall Length: 47-5/8 Fork Width: 22-3/4 Bottom Thickness: 3/16" Side Thickness: 10 ga. Dumping Angle: 40° Weight Capacity: 2500 lbs

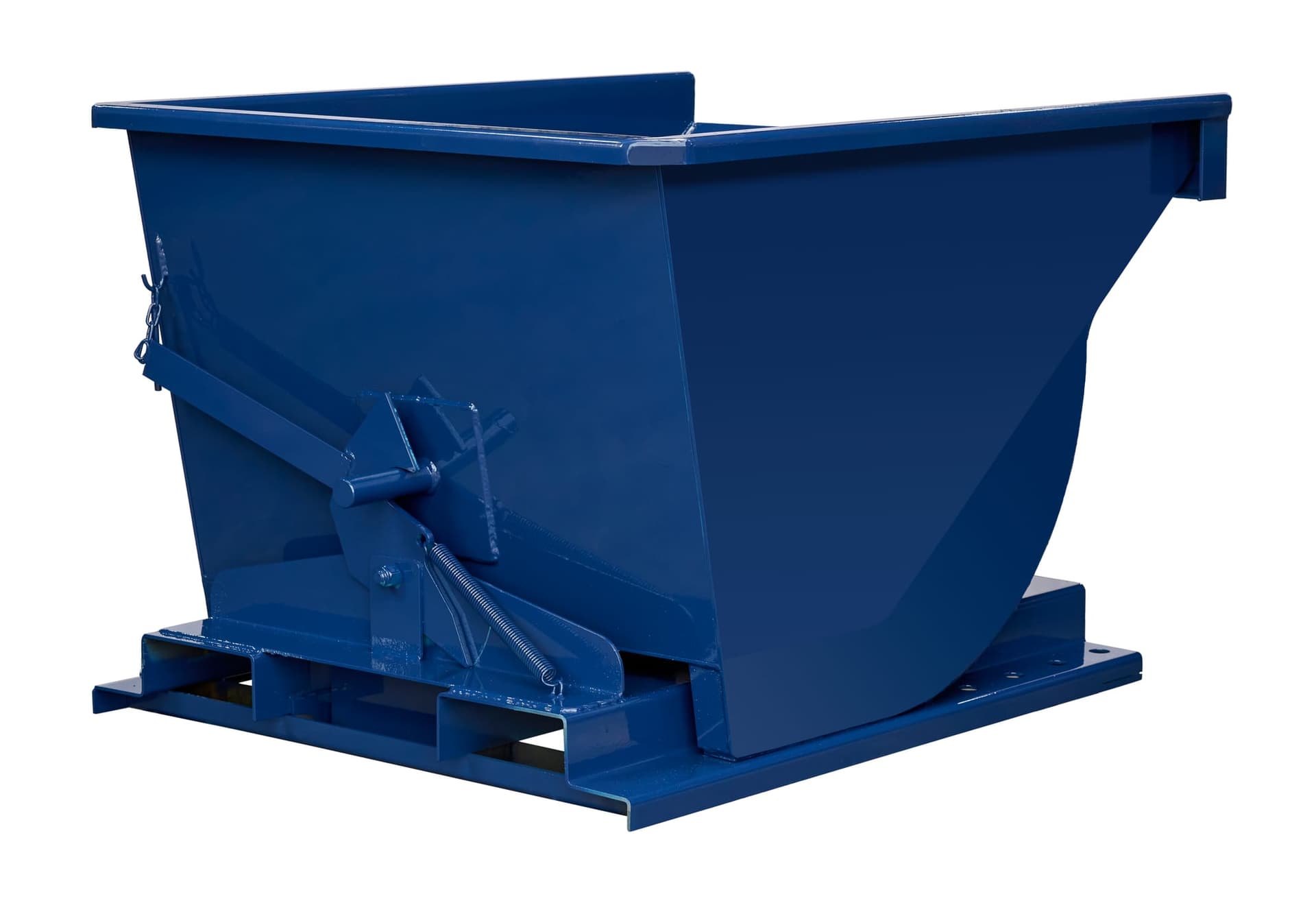

SD12R

Capacity (Cu. Yards): 1/2 Weight (with no extras): 380 lbs Height: 32-1/8 Overall Width: 40-1/2 Overall Length: 48-3/8 Fork Width: 29-1/8 Bottom Thickness: 3/16" Side Thickness: 10 ga. Dumping Angle: 40° Weight Capacity: 2500 lbs

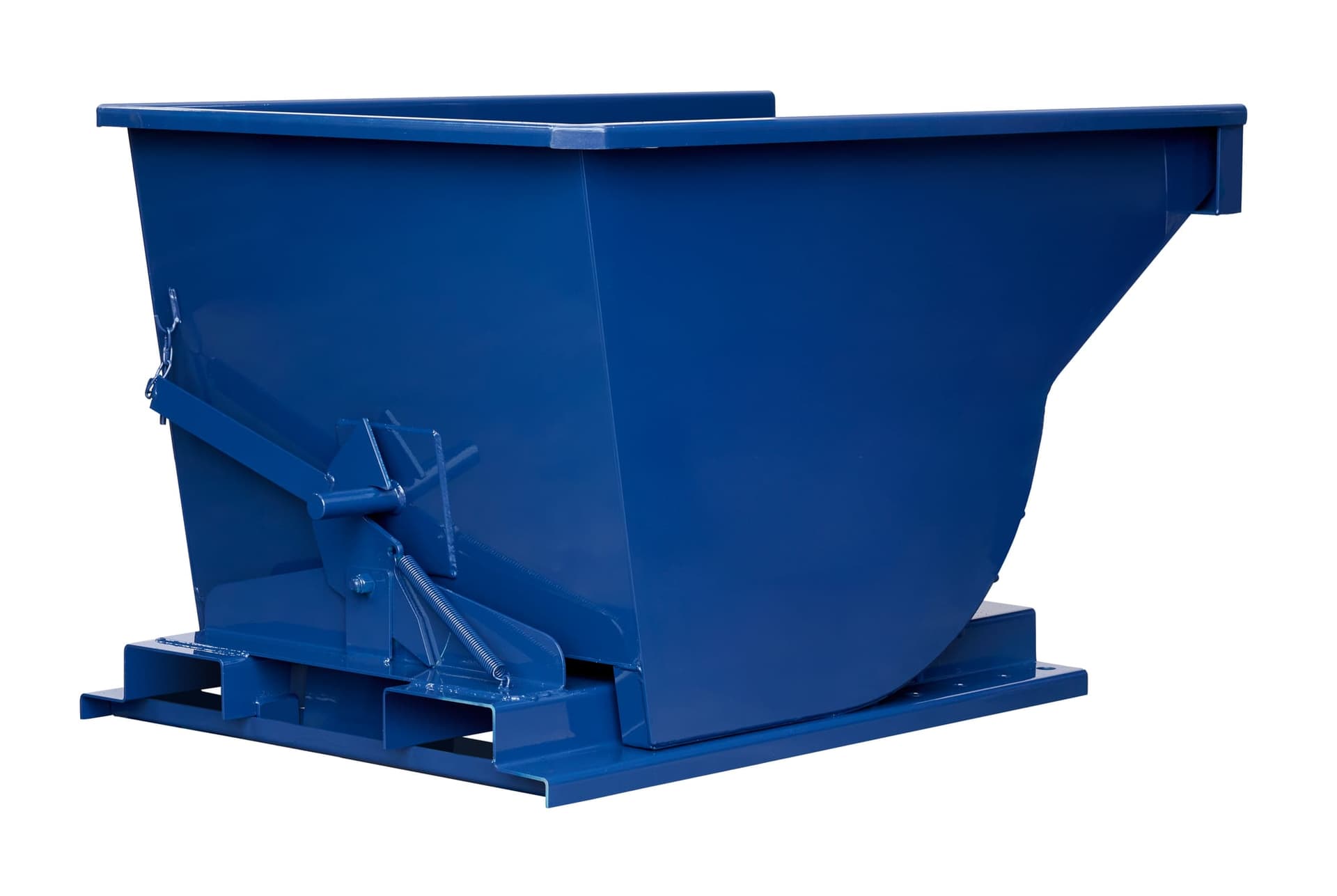

SD34R

Capacity (Cu. Yards): 3/4 Weight (with no extras): 440 lbs Height: 35-1/4 Overall Width: 40-1/2 Overall Length: 57-7/8 Fork Width: 31-1/4 Bottom Thickness: 3/16" Side Thickness: 10 ga. Dumping Angle: 40° Weight Capacity: 4000 lbs

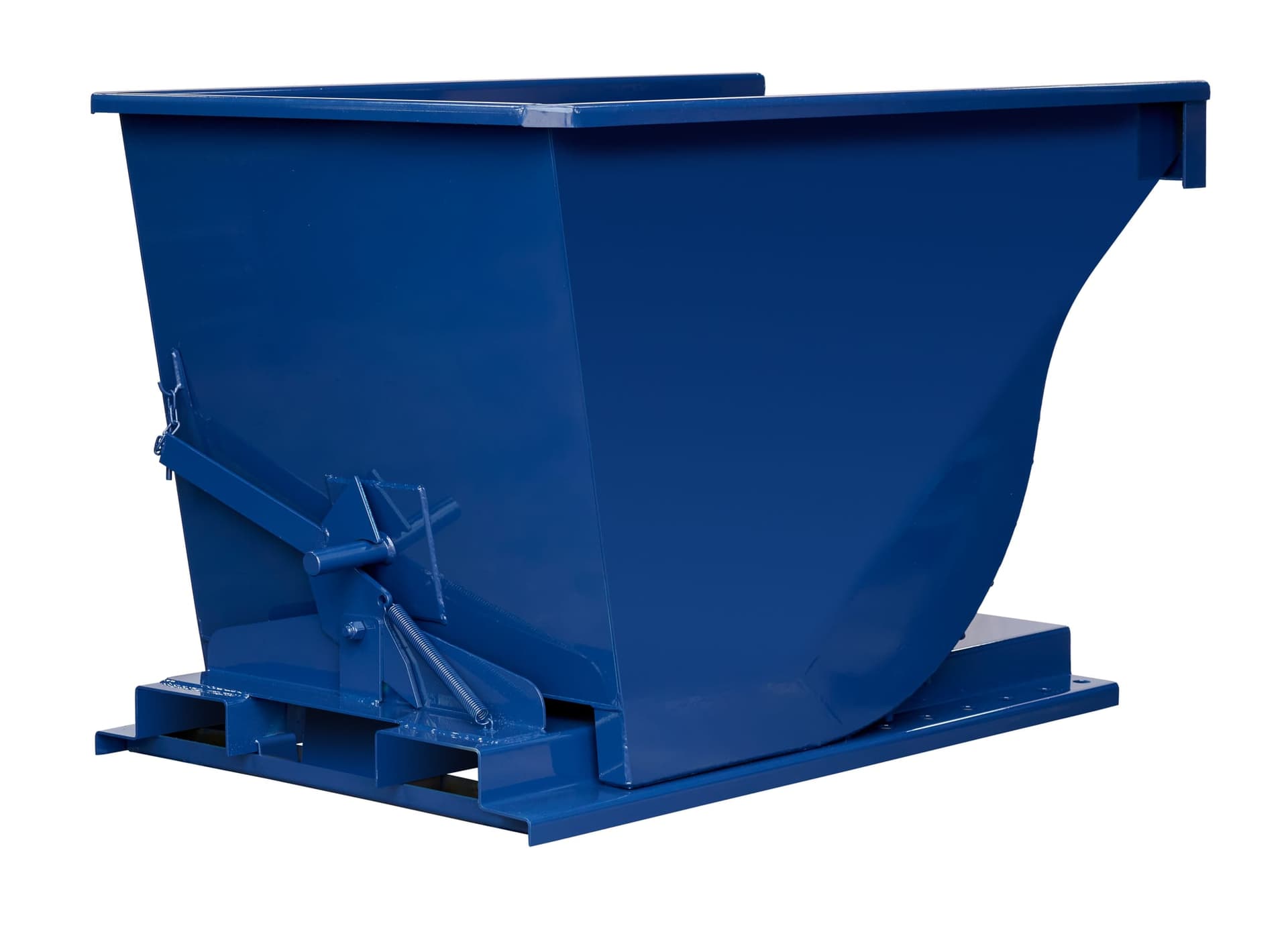

SD100R

Capacity (Cu. Yards): 1 Weight (with no extras): 505 lbs Height: 40-7/8 Overall Width: 40-1/2 Overall Length: 62-1/2 Fork Width: 36-7/8 Bottom Thickness: 3/16" Side Thickness: 10 ga. Dumping Angle: 40° Weight Capacity: 5000 lbs

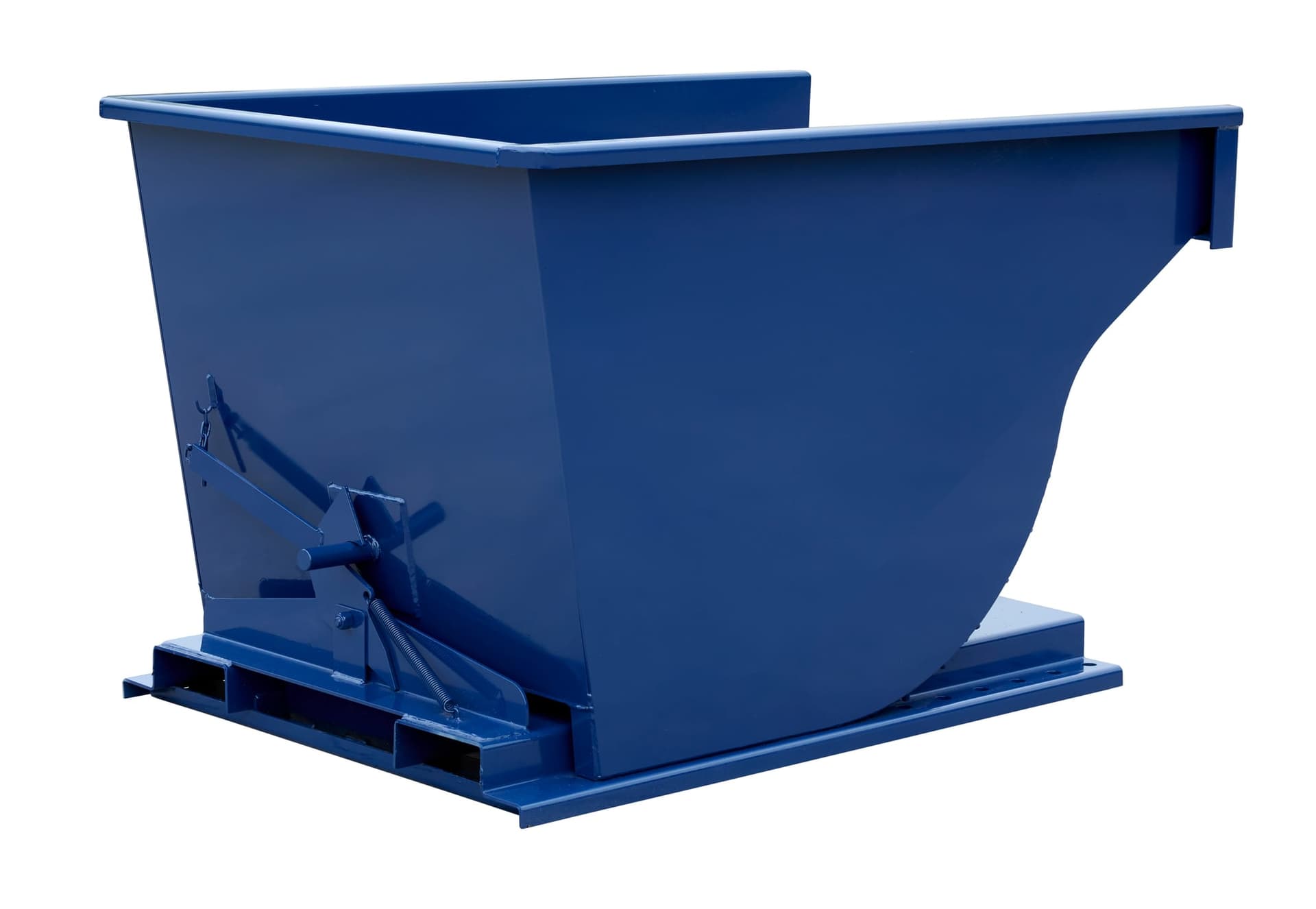

SD150R

Capacity (Cu. Yards): 1-1/2 Weight (with no extras): 715 lbs Height: 43-5/8 Overall Width: 47-1/2 Overall Length: 70-1/2 Fork Width: 36-1/4 Bottom Thickness: 3/16" Side Thickness: 3/16" Dumping Angle: 40° Weight Capacity: 5500 lbs

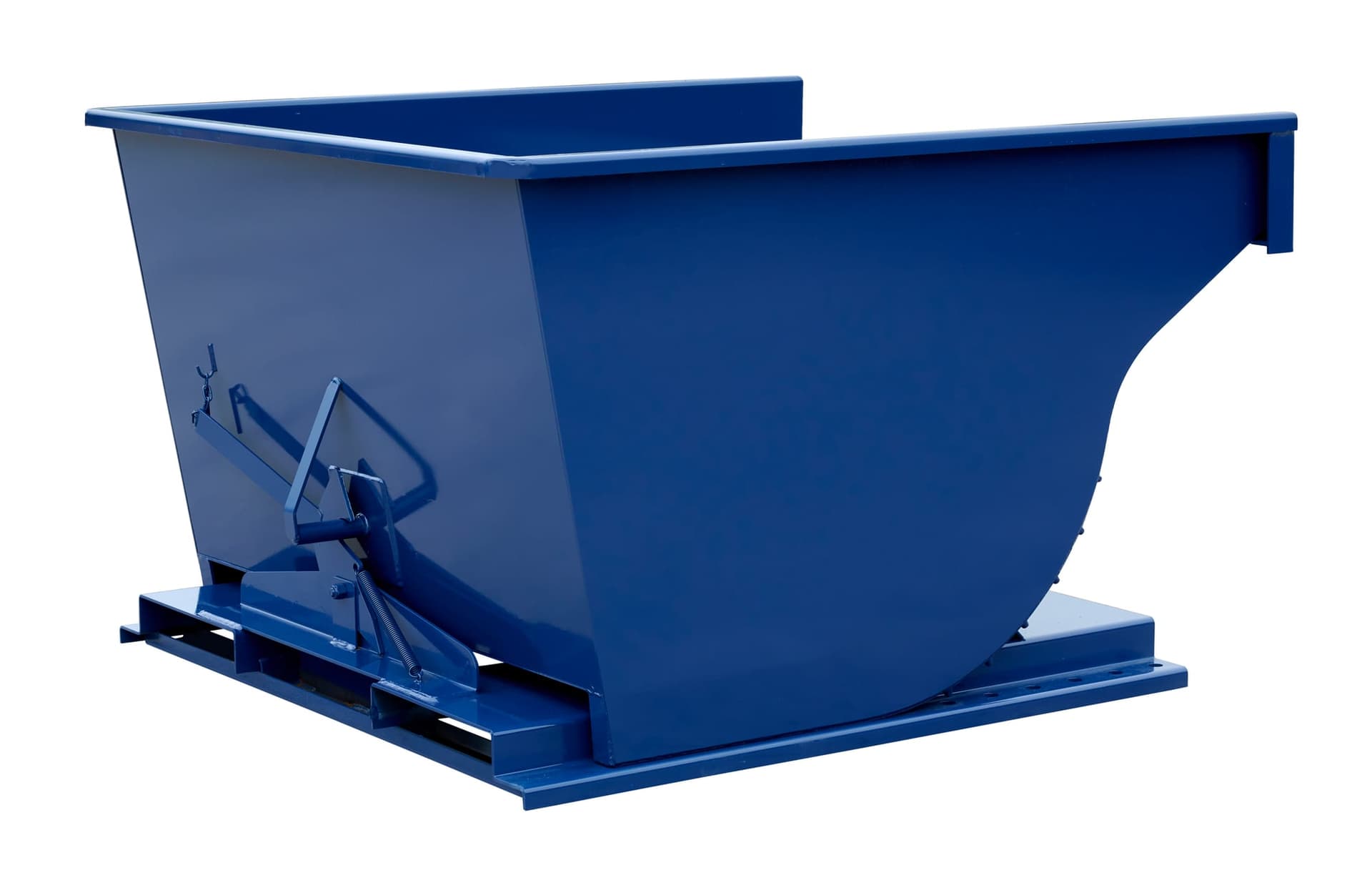

SD200R

Capacity (Cu. Yards): 2 Weight (with no extras): 920 lbs Height: 43-5/8 Overall Width: 64-1/2 Overall Length: 70-1/2 Fork Width: 36-1/4 Bottom Thickness: 3/16" Side Thickness: 3/16" Dumping Angle: 40° Weight Capacity: 5500 lbs

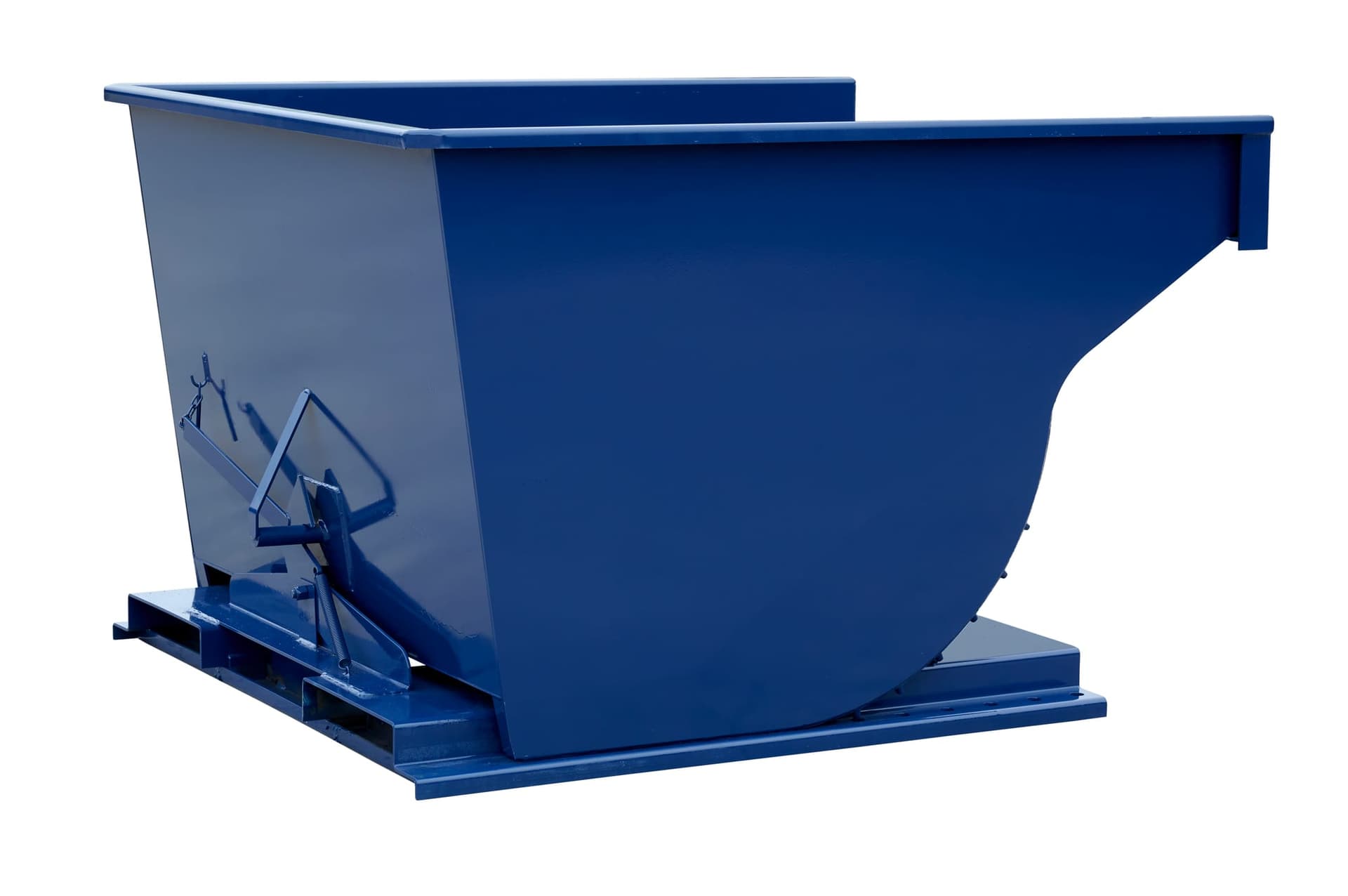

SD250R

Capacity (Cu. Yards): 2-1/2 Weight (with no extras): 930 lbs Height: 47-1/4 Overall Width: 64-1/2 Overall Length: 73-7/8 Fork Width: 40-1/4 Bottom Thickness: 3/16" Side Thickness: 3/16" Dumping Angle: 40° Weight Capacity: 5500 lbs

SD300R

Capacity (Cu. Yards): 3 Weight (with no extras): 1055 lbs Height: 47-1/4 Overall Width: 76-1/2 Overall Length: 73-7/8 Fork Width: 40-1/4 Bottom Thickness: 3/16" Side Thickness: 3/16" Dumping Angle: 40° Weight Capacity: 5000 lbs

Crane Hopper 3/4 Yard

3/4 yard crane hopper. Customization available on request.

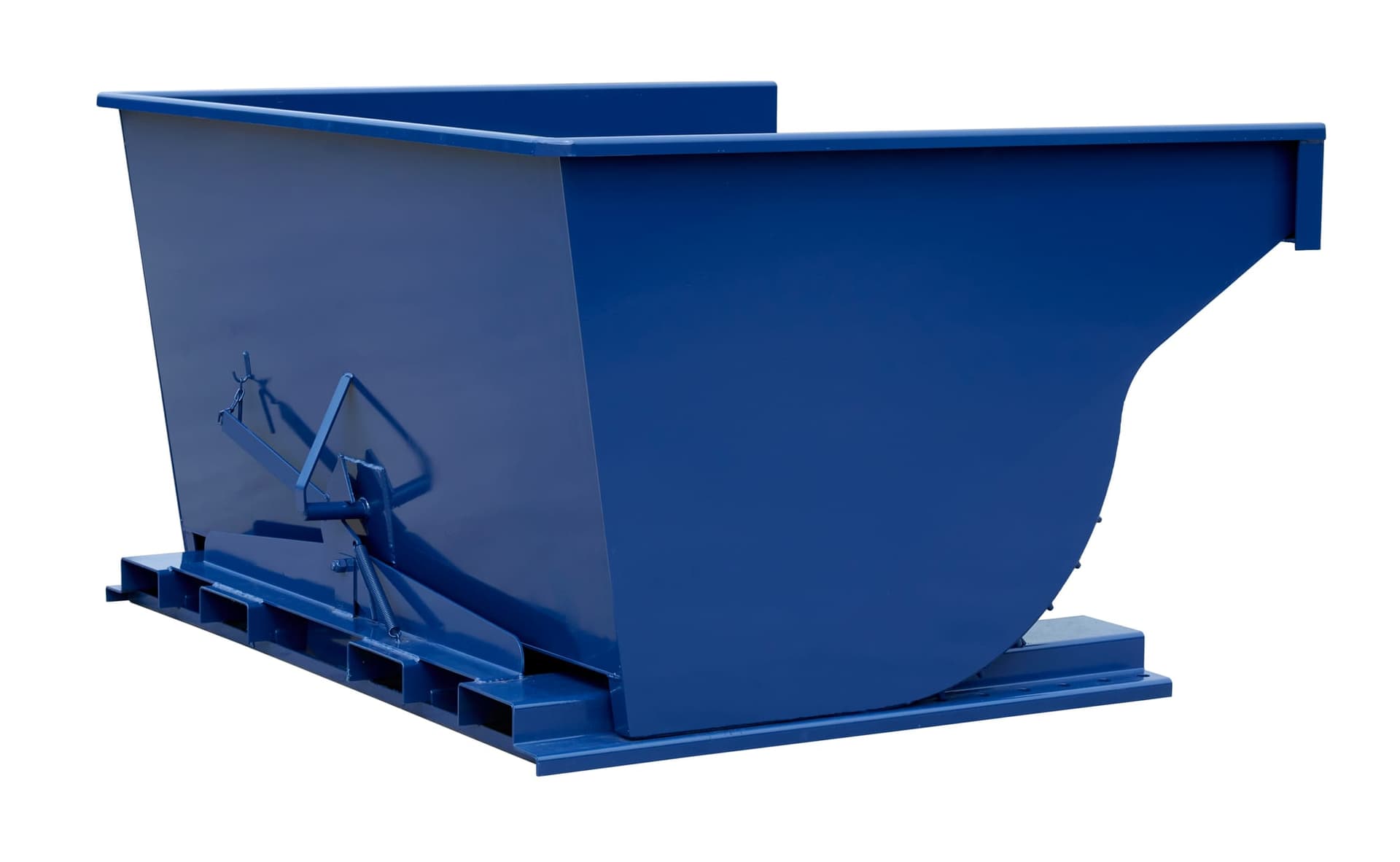

SD400R

Capacity (Cu. Yards): 4 Weight (with no extras): 1295 lbs Height: 47-1/4 Overall Width: 86 Overall Length: 73-7/8 Fork Width: 40-1/4 Bottom Thickness: 3/16" Side Thickness: 3/16" Dumping Angle: 40°

SD500R

Capacity (Cu. Yards): 5 Weight (with no extras): 1480 lbs Height: 55-5/8 Overall Width: 90 Overall Length: 87-1/4 Fork Width: 47-3/8 Bottom Thickness: 3/16" Side Thickness: 3/16" Dumping Angle: 40° Weight Capacity: 4000 lbs

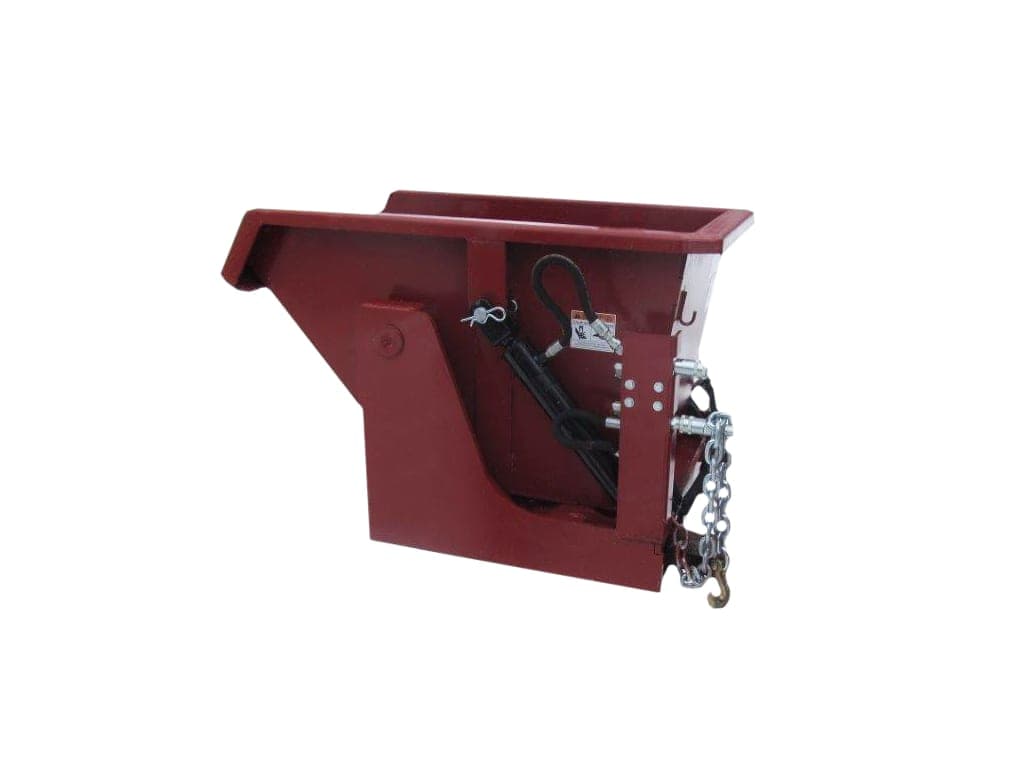

HD14 (Hydraulic)

Height: 27-1/2 Overall Width: 29-1/4 Overall Length: 41-3/4 Dumping Angle: 40°

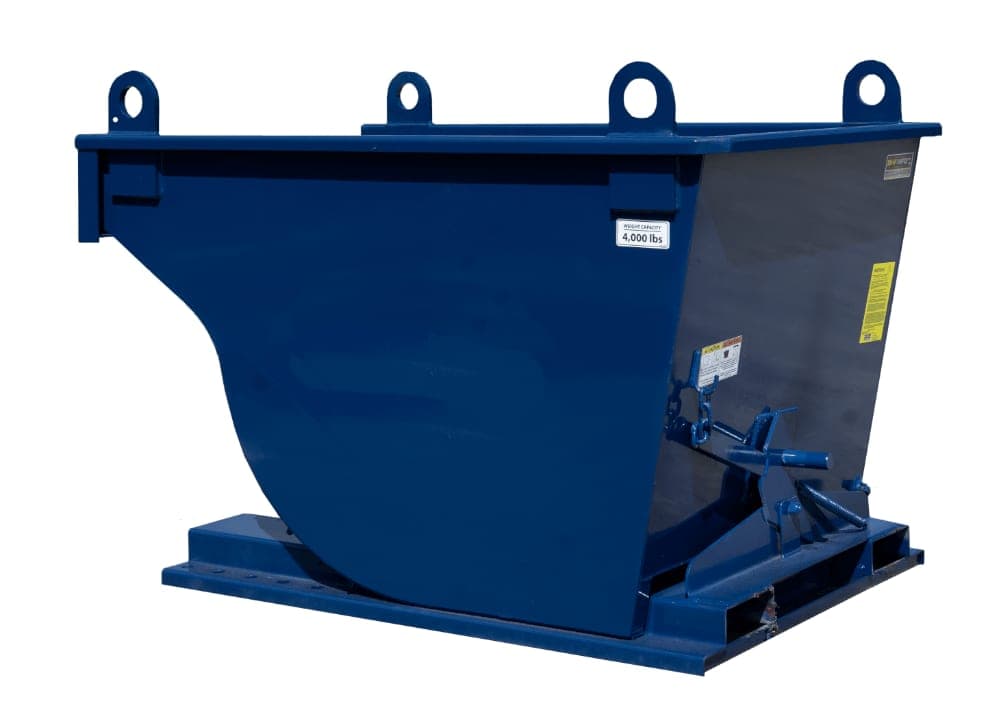

Engineered Self Dumping Hopper with Lifting Lugs

SD12HE 2500lbs Capacity SD34HE 2500lbs Capacity SD100HE 2500lbs Capacity SD150HE 4000lbs Capacity SD200HE 4000lbs Capacity ‍

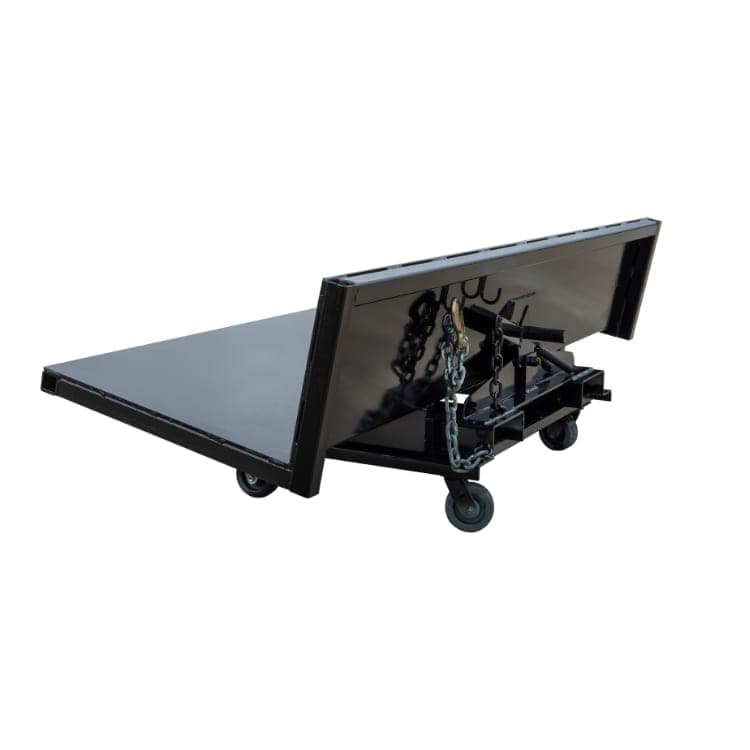

Tipper Shelves
